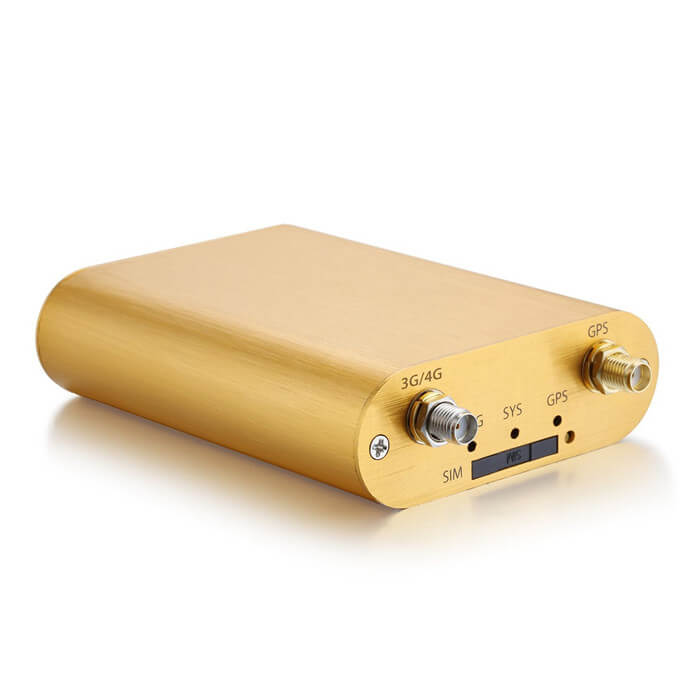

The MT600-NB is a 4G vehicle GPS tracker (Cat M1 & NB-IoT) that reports location data via TCP/UDP. Built on the Quectel BG96 module, it supports global CAT M1 & NB-IoT networks. Compatible with the standard GPRMC sentence, it’s easy to integrate into third-party platforms like Traccar, GPSWorx, GPS-Server, GPSGate, and more.
With asset tracking, fleet managers can use GPS to monitor asset locations and efficiently direct equipment to job sites, ensuring seamless control. GPS-based asset tracking is essential for equipment management, especially for larger companies with many assets.
By installing small, mountable tracking hardware, you can easily monitor equipment locations via laptop or smart device. Users can track the unit remotely via smartphone or PC, making it ideal for vehicles, trailers, containers, and more.
1. Applications
- CAT M1 & NB-IoT with 2G Fallback
- Real-time tracking
- ACC switch status alarm (Ignition ON/OFF)
- External power cut off alarm
- Remote cut off fuel / ignition (optional)
- SOS Alert (optional)
- Vehicle towing / Movement alarm
- Over-Speed alarm and reporting (one server)
- Backup battery low power alarm
- Power saving / sleep mode
- Data backup when Network is unavailable
- Compatible with traccar & GPSWOX
- Config via SMS/USB
- Open Protocol
2. Applications
- Logistics tracking
- Asset tracking
- Vehicles tracing
- Trailer tracing
- Container tracking
- Base station tracking
3. In the box
Standard Accessories
- 1* MT600-NB GPS Tracker
- 1* 6PIN Power wired
- 1* 4G Antenna
- 1* GPS Antenna
- 1* SIM Slot
Optional Accessories
- 1* Relay
- 1* SOS Button
- 1* USB Config Cable
Note: For each order (regardless of quantity), we will provide only one free USB config cable. If you need more USB Config cables, please order them from this link.
4. Specification
| Dimension | 90(L) x 70(W) x 24(H) mm |
| Weight | 138g |
| Input Voltage | 12V-36V |
| Backup battery | 3.7 V 500 mAh |
| Frequency bands | Cat M1 (LTE-M,eMTC): FDD LTE: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28/B39 NB-IoT ( LTE NB1): FDD LTE: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28 GSM: 850/900/1800/1900Mhz |
| GPS Chip | GPS/Beidou |
| GPS sensitivity | -162dBm |
| Channel | 56 |
| Positioning Accuracy | 10m |
| Cold Start | 30s |
| Warm start | 15s |
| Hot start | 1s |
| Working temperature | -20°C to +70°C |
| Humidity | 5% to 95% non-concretion |
| Antenna | External LTE CAT M1/NB1 & GPS antennas |
| Sensor | 3D accelerometer sensor |
| LED | Charge/GPS/SYS |
| SIM Card interface | Micro Size SIM |
| Certificate (Module) | CE/FCC/PTCRB/A&T/Verizon/T-Mobile |
5. Installation
- Get ready with a Standard size SIM Card with 10-15MB of data a month.
- Insert the SIM card into the SIM card plastic tray.
- Ensure the SIM card has metal contacts facing up
- Gently slide the SIM Tray into the SIM Slot
6. GPS Tracking Platform
7. User Manual & Catalog
FAQ:
- Q: What is the delivery time & shipping time?
- A: The device will be sent in 1-2 days after receiving your order. DHL will take 7-10 days and free shipping will 21-25 days.
- Q: What is the demo account for the App & platform?
- A: Web: www.trackits.com (Click “Demo” auto-login)
- Q: Do you have some free tracking platform to test?
- A: Sure, The MT710 already compatile with Traccar (port 5030), Vialatm(port 7731), gps-trace(port 30184 ), gpwox(port 6030).
- Q: Does the item include SIM Card and tracking platform service?
- A: If you chooes the SIM Card Plan the we will send you the device with Mictrack IoT SIM Card. If you want to use our tracking platform, Click here to subscribe Mictrack tracking platform service.
- Q: Which SIM Card is better to match with the IoT GPS tracker?
- A: Get an LTE-M or NB-IoT SIM card that supports data service with 20MB/month. We recommend the Mictrack SIM that supports Global CAT M1 and NB-IoT networks.
- Q: Can I integrate the device with my own server?
- A: Sure, our protocol is open, and Click here to download the protocol. After integrating the device will direct communication with your server and not report data to our server anymore.
- Q: Which Third Party Platforms are compatible with this CAT M1 & NB-IoT GPS tracker?
- A: Supported Third Party Platform.
- Q: How to config the device at the first time to use?
- A: Click this post will show you how to setup the MT600-NB for your time time to use.
- Q: What protocols are supported by this device?
- A: It supports TCP and UDP.
- Q: What network types are supported by the device?
- A: It supports CAT M1, NB-IoT and GSM. Don’t support 3G and 4G CAT 1 & 4G CAT 4.
- Q: What frequency bands are supported by the device?
- A: It supports all following bands:
Cat M1 (LTE-M) : B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28
NB-IoT : B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28
GSM: 850/900/1800/1900Mhz
- Q: Does the device support network locking? If so, how can it be done?
- A: yes, you can lock the devcie to CAT M1, NB-IoT, CAT M1 & 2G, or NB-IoT & 2G. check this post to get more deatil.
- Q: How to track my order?
- A: You can click this link and then input your order number (for examples #2023) and your email to check.
- Q: Still questions?
- If you have any issues please feel free to discuss on Mictrack Forum. Our engineers will reply within 12 hours.
