The MT700 is an IP68 waterproof asset GPS tracker with long battery life, designed for ultra-low power tracking needs. Leveraging Cat M1 & NB-IoT technology, it offers exceptional efficiency with up to 7 years of standby time on its internal batteries. As a GPS tracker with long battery life, it is ideal for long-term tracking without frequent maintenance.
With built-in powerful magnets, the MT700 is easy to install without wiring, making it a dependable tracker with long battery life for various applications. Users can monitor the device in real-time from anywhere using their mobile phone or PC. It has been widely utilized in fleet management, trailers, containers, logistics, car rentals, automobile finance, transportation, and other industries.
1. Applications
- CAT M1 & NB-IoT with 2G Fallback
- 7 Years battery life （Only MT700-N/MT700-NW can support this battery life ）
- IP68 waterproof
- Quick Charge 2A@5V (for MT700/MT700-W Only)
- Dynamic Power Path Management
- GPS+LBS+WiFi Positioning(optional)
- Support XTRA (Assisted GPS)
- Easy Installation
- Powerful Magnet Mount
- Rugged Construction
- Real-timing Tracking
- Low Power Alarm
- Removal Alerts
- Smart Motion Detection
- Scheduled Timing Report
- Programmable via Web/USB/SMS
- Open Protocol& Easy to Integrate
2. Applications
- Trailer Tracking
- Container Tracking
- Logistics Tracking
- Vehicles Tracking
- Automobile Finance
- Fleet Management
3. In the box
Standard Accessories
- 1* MT700 GPS Tracker
- 1* USB Charge cable (for MT700/MT700-W only)
Optional Accessories
- 1* Mounting Bracket (optional)
- 1* USB Config Cable (black wire)
Note: For each order (regardless of quantity), we will provide only one free USB config cable. If you need more USB Config cables, please order them from this link.
4. Specification
| Dimension | 88mm*62mm*34mm (3.46″ *2.44″ *1.34″) |
| Weight | 290g (10oz) |
| Charging mode | Micro USB charging DC; Quick Charge 2A@5V |
| Power consumption | <1.5uA standby current (in lowest power configuration) |
| Backup battery | Rechargeable 3.7V 7800mAh Li-battery; Non-rechargeable LiFeSO2 batteries are optional |
| Frequency bands | Cat M1 (LTE-M) : B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28 NB-IoT: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28 GSM: 850/900/1800/1900Mhz |
| Working temperature | -20°C to 60°C (-4°F to 140°F) |
| Mounting | Magnet or Bracket (optional) |
| Positioning | GPS, LBS, AGPS,WiFi (optional) |
| GPS | Qualcomm Gen 8C GNSS receiver |
| GPS Antenna | Internal |
| Cellular Antenna | Internal |
| Sensor | 3-Axis Accelerometer, Light Sensor |
| Humidity | 5% to 95% non-concretion |
| LED | Charge/SYS/GPS |
| SIM Card interface | Internal Micro 3FF SIM |
| Protocol | TCP, UDP, SMS |
| Waterproof | IP68 |
| Battery Life | 7 Years |
| Certificate | FCC, CE, RCM |

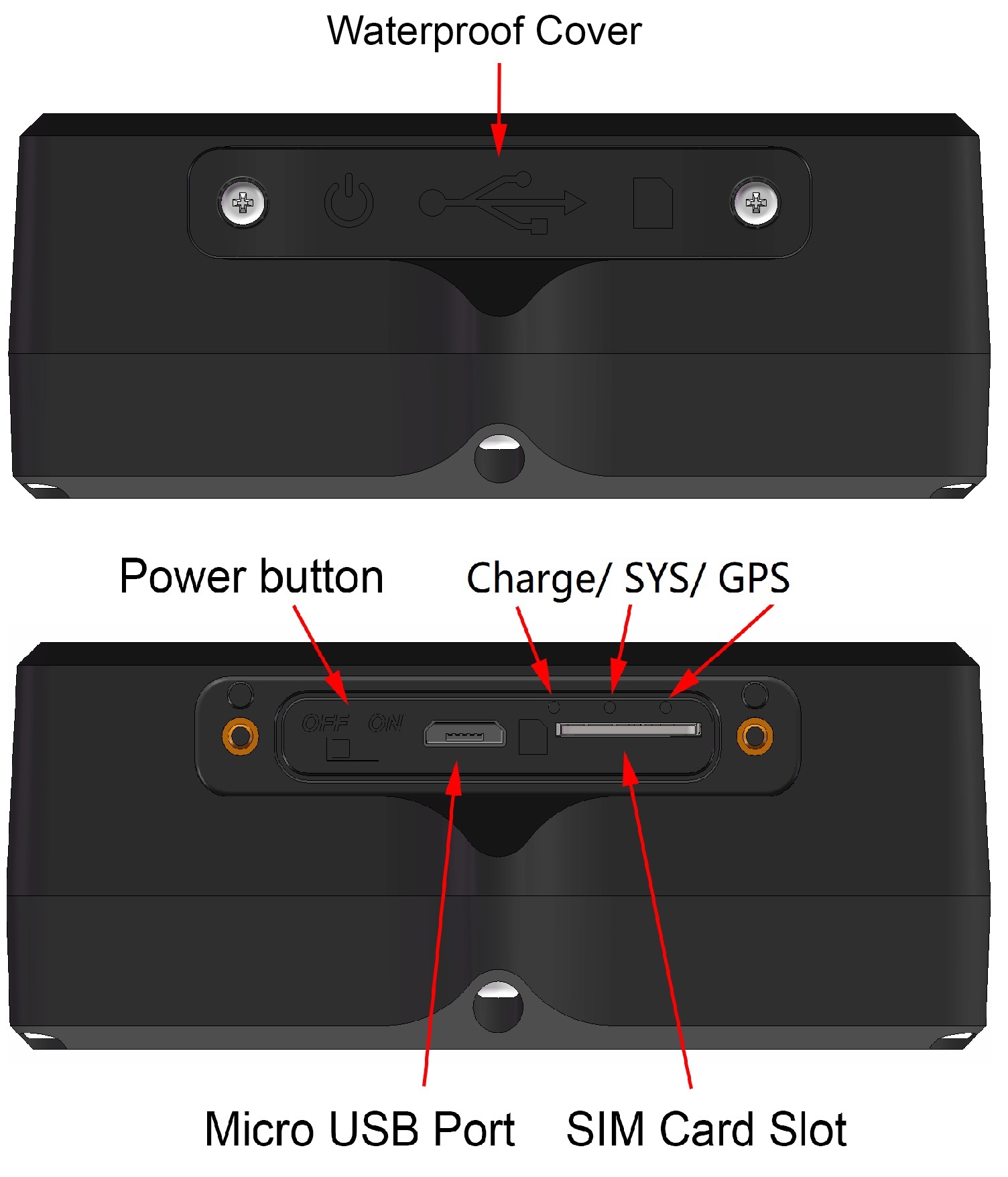

5. Interface
6. Installation
- Get ready for a Micro Sim Card that supports Cat M1 or NB-IoT with 15MB of data a month
- Open the waterproof cover
- Insert Sim card to sim card slot correctly(as the sim icon location )
- Make the Power button ON to power ON (Blue and green led will light).
- After that, the device will be ready.
- Check the LED status until access to the CAT M1 or NB-IoT network.
7. GPS Tracking Platform
- http://www.trackits.com (click “Demo” will auto-login)
8. User Manual & Catalog
- Catalog
- User manual
- Working Mode
- Commands List
- Protocol
- FCC & CE Certification (contact us to get the certification)
9. Standby Power Consumption less than 1.5uA
10. Battery Life test on Mode 3 (for MT700-N/MT700-NW only)
11. MT700 Series Comparison Table
| Features | MT700 | MT700-W | MT700-N | MT700-NW |
|---|---|---|---|---|
| 7 Years Battery Life | × | × | √ | √ |
| 18 Months Battery Life | √ | √ | × | × |
| CAT M1 & NB-IoT & 2G | √ | √ | √ | √ |
| IP68 Waterproof | √ | √ | √ | √ |
| Non-rechargeable | × | × | √ | √ |
| Rechargeable | √ | √ | × | × |
| Screw/Magnet Mounting (*mounting bracket are optional) | √ | √ | √ | √ |
| Real-timing Tracking | √ | √ | √ | √ |
| GPS Positioning | √ | √ | √ | √ |
| LBS Positioning | √ | √ | √ | √ |
| WiFi Positioning | × | √ | × | √ |
| Removal Alarm (light sensor) | √ | √ | √ | √ |
| Low Battery Alarm | √ | √ | √ | √ |
| Power Saving Mode | √ | √ | √ | √ |
| Programmable via Web/USB/SMS | √ | √ | √ | √ |
| Battery Holder (* use for install AA batteries) | × | × | √ | √ |
| 7800mAh Backup Battery | √ | √ | × | × |
| Open Protocol | √ | √ | √ | √ |
| FCC, CE, RCM | √ | √ | √ | √ |
12. How to Choose the MT700
- MT700-N/MT700-NW are non-rechargeable versions and do not include batteries by default. Customers need to purchase 3PCS Energizer L91 AA 1.5V batteries from our online store (click here) or locally. The battery life is up to 7 years when reporting once a day.
- MT700/MT700-W are rechargeable versions that come with a backup 7800mAh battery. The battery life up to 3 years when reporting once per day.
13. Real Battery Life Test
- We have taken one MT700-W and one MT700-NW in our office for the real long battery life test.If you want to check the test results, please click the following link:
14. FAQ:
- Q: What is the delivery time & shipping time?
- A: The device will be sent within 1-2 days after receiving your order. Priority Shipping will take 7-10 days, and Economy Shipping will need 21-25 days.
- Q: What is the demo account for the App & platform?
- A: Web: www.trackits.com (click “Demo” will auto-login)
- Q: Does the item include SIM Card and tracking platform service?
- A: SIM Card is not included, you can order the Low Cost SIM Card card from our us (click here) or locally
- If you want to test with our server，Click here to subscribe Mictrack tracking platform service
- Q: Which SIM Card is better to match with the IoT GPS tracker?
- A: Get an LTE-M or NB-IoT SIM Card that supports data service with 15MB/month.
- Q: Can I integrate the device with my own server?
- A: Sure, our protocol is open, and Click here to download the protocol. After integrating the device will direct communication with your server and not report data to our server anymore.
- Q: Which Third Party Platforms are compatible with this CAT M1 & NB-IoT GPS tracker?
-
A: Currently it supports Traccar (5030), Gurtam (22127), GPSWOX(6030), GPS-Server (11214), Navixy (47717), and Flespi. Protocol setup to TCP (UDP will not work on these platforms). For more detail please check the Third Party Platform Supported List
-
If you have any issues please feel free to discuss on Mictrack Forum. Our engineers will reply within 12 hours.
