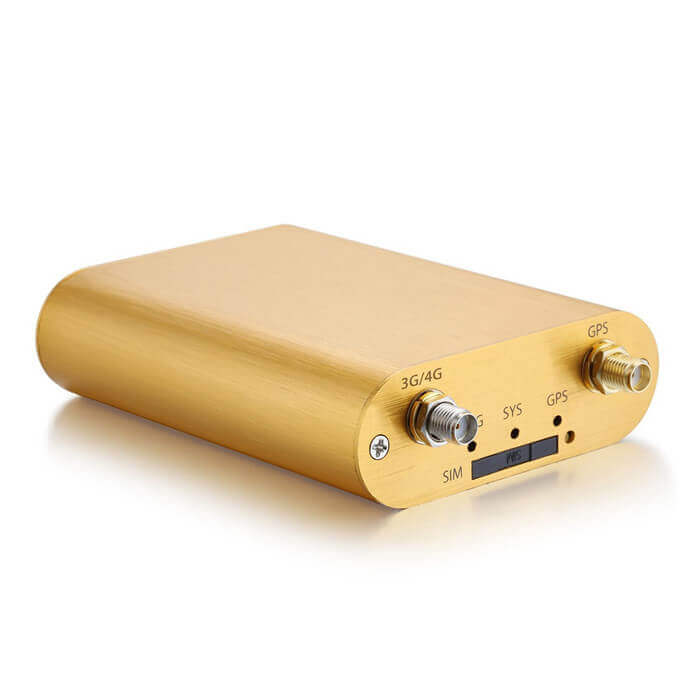

The MT600 is a 4G GPS tracker released in 2016. After continuous firmware upgrades over the past few years, it now works very stably. This true 4G device supports 4G/3G networks and has passed CE, NTC, NBTC certifications. It has been tested in the USA, Australia, Asia, Europe, and more.
- Most countries have shut down their 2G and 3G networks. A 4G device saves time and money, as you won’t need to upgrade again if 3G is discontinued.
- 4G offers full network coverage and faster speeds compared to 3G/2G.
1. Features
- 4G LTE with 2G fallback (Qualcomm 4G Modem)
- Real-time tracking
- ACC switch status alarm (Ignition ON/OFF)
- External power cut off alarm
- Remote cut off fuel / ignition (optional)
- SOS Alert (optional)
- Vehicle towing / Movement alarm
- Over-Speed alarm and reporting (one server)
- Backup battery low power alarm
- Power saving / sleep mode
- Data backup when Network is unavailable
- Compatible with traccar & GPSWOX
- Config via SMS/USB
- Open Protocol
2. Applications
- Cars
- Tractors
- Trucks
- Boats

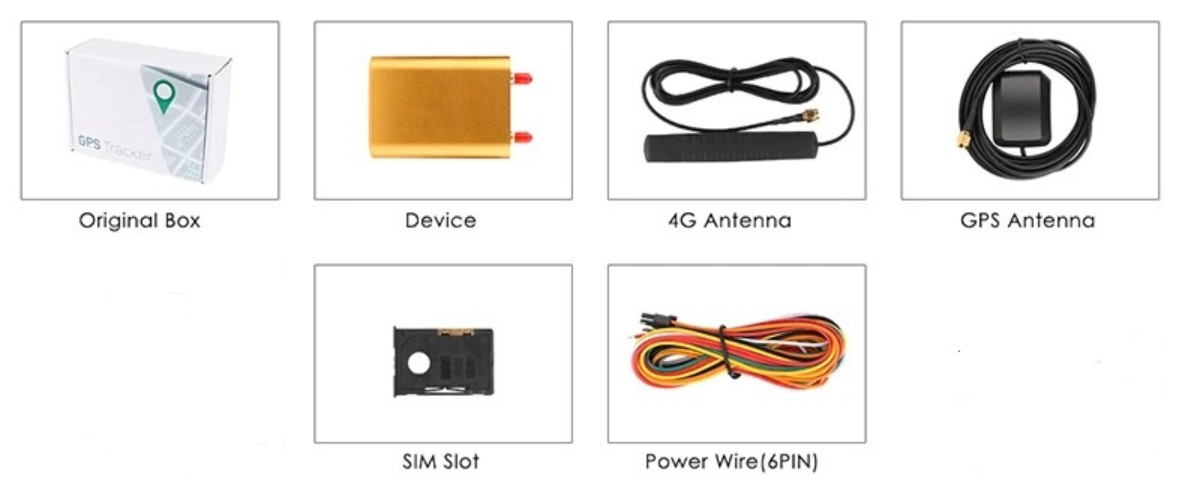

3. In the box
Standard Accessories
- 1* MT600 GPS Tracker
- 1* 6PIN Power wired
- 1* 4G Antenna
- 1* GPS Antenna
- 1* SIM Slot
Optional Accessories
- 1* Relay
- 1* SOS Button
- 1* USB Config Cable
4. Specification
| Dimension | 90(L)*70(W)*24(H)mm |
| Weight | 138g |
| Input Voltage | 12-36 VDC |
| Backup battery | 3.7V 500 mAh |
| Power Consumption | 50mA standby current at 12 V |
| Working hours | 10 hours in power-saving mode, 4 hours in normal mode |
| 4G Frequency bands | MT600-A (US/Canada/Mexico) 4G LTE: B2/B4/B12 3G WCDMA: 850/1700/1900MHz MT600-E (Europe/Asia/Africa) 4G LTE: B1/B3/B7/B8/B20/B28A 3G WCDMA : 900/2100MHz 2G: 900/1800MHz MT600-AU (Australia/New Zealand) 4G LTE: B1/B2/B3/B4/B5/B7/B8/B28/B40 3G WCDMA: 850/900/1900/2100MHz 2G :850/900/1800/1900MMz Note: Select correct device according to your local frequency bands. |
| GPS sensitivity | -162dBm |
| Channel | 56 |
| Positioning Accuracy | 10m |
| Cold Start | 30s |
| Warm start | 15s |
| Hot start | 1s |
| Working temperature | -20°C to +60°C |
| Humidity | 5% to 95% non-concretion |
| Antenna | external 4G/GPS antenna |
| Sensor | 3D accelerometer sensor |
| LED | 4G(blue), GPS(green), Power(red) |
| SIM Card interface | Standard Size SIM |
| Certificate | CE/NBTC/NTC/Vodafone |
5. Installation
- Installation Video: https://youtu.be/scXEk8GVtqA
6. GPS Tracking Platform
- http://www.trackits.com (Click “Demo” auto-login)
7. User Manual & Catalog
8 How to Choose the MT600
- MT600-A: For the US, Canada and Mexico
- MT600-AU: For Australia and New Zealand
- MT600-E: Europe, Asia and Africa
FAQ:
- Q: What is the delivery time & shipping time?
- A: The device will be sent in 1-2 days after receiving your order. DHL will take 7-10 days and free shipping will 21-25 days.
- Q: What is the demo account for the App & platform?
- A: Web: www.trackits.com (Click “Demo” auto-login)
- Q: Do you have some free tracking platform to test?
- A: Sure, The MT600 already compatile with Traccar (port 5030), gps-trace(port 30184 ), gpwox(port 6030).
- Q: Does the item include SIM Card and tracking platform service?
- A: If you chooes the SIM Card Plan the we will send you the device with Mictrack IoT SIM Card. If you want to use our tracking platform, Click here to subscribe Mictrack tracking platform service.
- Q: Which SIM Card is better to match with the IoT GPS tracker?
- A: Get an 4G SIM card that supports data service with 20MB/month. We recommend the Mictrack SIM that supports Global 4G networks.
- Q: Can I integrate the device with my own server?
- A: Sure, our protocol is open, and Click here to download the protocol. After integrating the device will direct communication with your server and not report data to our server anymore.
- Q: Which Third Party Platforms are compatible with this 4G GPS tracker?
- A: Supported Third Party Platform.
- Q: What are the supported commands for the device?
- A: MT600 Commands List
- Q: What protocols are supported by this device?
- A: It supports TCP and UDP.
- Q: What network types are supported by the device?
- A: It supports 2G, 3G and Normal 4G.
- Q: How to track my order?
- A: You can click this link and then input your order number (for examples #2023) and your email to check.
- Q: Still questions?
-
If you have any issues please feel free to discuss on Mictrack Forum. Our engineers will reply within 12 hours.
