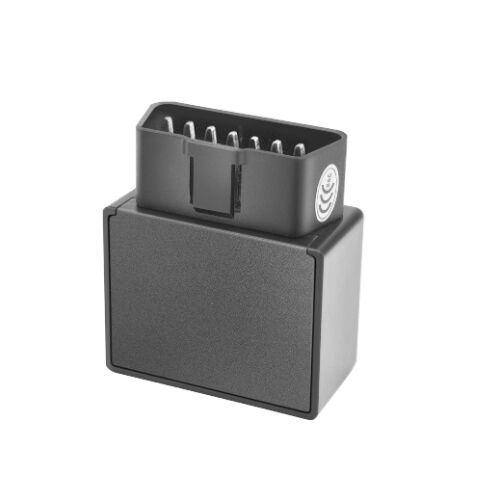

The MP91 is a plug-and-play 4G OBD tracker without wiring. Easy install to any vehicle with a standard OBD II connector. It can be used locate, track and monitor the vehicle via SMS, PC Computer or Mobile APP. It is commonly used to track and locate individual vehicles, the user also can real time tracking and check the historical route travelled.
1. Features
- 4G FDD LTE network support
- OBD II connector easy to install (Plug and Play)
- Real-time position acquiring
- Vehicle trip history and mileage data on web tracking platform
- Geo-Fence alarm and reporting (via server)
- Over-Speed alarm and reporting (via server)
- Remove and disconnect alarm
- Backup battery low power alarm
- Power saving / sleep mode
- Compatible with most of third party platform
- Open protocol
2. Applications
- Private cars
- Taxi
- Truck
- Fleet Management
3. In the box
- 1* MP91 GPS Tracker
4. Specification
| Dimension | 47(L)*41(W)*18(H)mm |
| Weight | 60g |
| Power supply | 12-24 VDC |
| Backup battery | 3.7 V 60 mAh |
| Power consumption | 50mA standby current at 12 V |
| Operating temperature | -20°C to 55°C |
| Humidity | 5%~95% non-concretion |
| Working hour | 1 hour in power-saving mode, 0.5 hours in normal mode |
| LED indicator | 4G(Yellow), GPS(Blue), Power(Red) |
| Sensor | 3D acceleration sensor |
| Antenna | Internal 4G & GPS antennas |
| GPS Sensitivity | -162dBm |
| Positioning Accuracy | 2.5m |
4G Frequency bands | 4G:B1/B2/B3/B4/B5/B7/B8/B28/B66 2G:850/900/1800/1900MMz |
| SIM Card interface | Micro Size SIM (3FF) |
5. Interface
6. Installation
- Get ready a Micro size SIM Card with 30MB data a month.
- Insert Sim card to sim card slot correctly
- After that the device will be ready.
8. User Manual & Catalog
FAQ:
- Q: What are the delivery and shipping times?
- A: Orders ship within 2–3 business days after payment (weekends and public holidays excluded). Priority Shipping takes 7–10 days. Free Shipping (18–25 days) is available in selected countries. The options for your country are shown at checkout.
- Q: What is the demo account for the App & platform?
- A: Web: www.trackits.com (Click “Demo” auto-login)
- Q: Do you have some free tracking platform to test?
- A: Sure, The MP91 already compatile with Traccar (port 5013), gpwox(port 6013).
- Q: Does the item include SIM Card and tracking platform service?
- A: If you choose the SIM Card Plan, we will send you the device with Mictrack IoT SIM Card. If you want to use our tracking platform, subscribe to the Mictrack tracking platform service.
- Q: Which SIM Card is better to match with the IoT GPS tracker?
- A: Get an 4G SIM card that supports data service with 30MB/month. We recommend the Mictrack SIM that supports Global 4G & 2G networks.
- Q: Can I integrate the device with my own server?
- A: Yes, our protocol is open: download the communication protocol (PDF). After integrating the device will direct communication with your server and not report data to our server anymore.
- Q: Which Third Party Platforms are compatible with this 4G GPS tracker?
- A: Supported Third Party Platform.
- Q: What are the supported commands for the device?
- A: MP91 Commands List
- Q: What protocols are supported by this device?
- A: It supports TCP Only.
- Q: What network types are supported by the device?
- A: It supports 4G LTE with 2G fallback.
- Q: How to track my order?
- A: Open the order tracking page and enter your order number (for example #2023) and your email.
- Q: Still questions?
-
If you have any issues please feel free to discuss on Mictrack Forum. Our engineers will reply within 12 hours.
-
If you have any issues please contact us at [email protected]
