The MT700L is an IP68 waterproof asset GPS tracker that uses 4G LTE Cat 1 bis technology, providing up to 7 years standby time with AA lithium batteries (N versions, sold separately) or up to 3 years with the built-in rechargeable battery (EU/LA versions). Its built-in powerful magnets allow easy installation without wiring. Track the unit in real-time via mobile phone or PC anywhere. Widely used in fleet management, trailers, containers, logistics, car rental, auto finance, and cargo transportation
1. Features
- 4G LTE Cat 1 bis Connectivity (no 2G/3G fallback)
- Up to 7 Years Battery Life (N versions, AA lithium) or 3 Years (rechargeable versions) (one report per day)
- IP68 Dust & Water Resistance
- Positioning: GPS + WiFi + LBS
- Ultra-Low Power Consumption
- Easy Installation with Built-in Powerful Magnets
- Bracket Kits (optional)
- Rugged, Tamper-Proof Construction
- Low Power & Removal Alerts (light sensor)
- Smart Motion Detection
- Scheduled Timing Reports
- Multiple Power Saving Modes (configurable modes)
- PC & Mobile App Tracking
- Programmable via Web, USB-C, or SMS
- Open Protocol & Easy Integration with third-party platforms
2. Applications
- Trailer Tracking
- Container & Cargo Logistics Tracking
- Fleet Management
- Vehicle & Assets Rental
- Auto Finance & Asset Recovery
3. In the box
Standard Accessories
- 1 × MT700L Asset GPS Tracker
- 1 × USB-C Charging Cable (for MT700L-EU / MT700L-LA only)
Optional Accessories
- 1 × USB-C Config Cable
- 1 × Mounting Bracket
Note: For each order (regardless of quantity), we will provide only one free USB config cable. If you need more USB Config cables, please order them from this link.
4. Specification
| Dimension | 88mm*62mm*34mm (3.46″ *2.44″ *1.34″) |
| Weight | 290g (10oz) |
| Charging mode | USB-C charging DC; Quick Charge 2A@5V (Only for MT700L-EU/MT700L-LA) |
| Power consumption | <1.5uA standby current (in lowest power configuration) |
| Backup battery | Rechargeable 3.7V 7800mAh Li-polymer battery (Only for MT700L-EU/MT700L-LA) Non-rechargeable LiFeS2, batteries excluded (Only for MT700L-N-EU/MT700L-N-LA) |
| Frequency bands | MT700L-EU / MT700L-N-EU: 4G LTE Cat 1 bis: B1/B3/B5/B7/B8/B20/B28 MT700L-LA / MT700L-N-LA: 4G LTE Cat 1 bis: B2/B3/B4/B5/B7/B8/B28/B66 |
| Working temperature | -20°C to 60°C (-4°F to 140°F) |
| Mounting | Magnet or Bracket (optional) |
| Positioning | GPS, LBS, AGPS,WiFi |
| GPS | Built-in GNSS receiver |
| GPS Antenna | Internal |
| Cellular Antenna | Internal |
| WiFi Antenna | Internal |
| Sensor | 3-Axis Accelerometer, Light Sensor |
| Humidity | 5% to 95% non-condensing |
| LED | Charge/SYS/GPS |
| SIM Card interface | Internal Nano 4FF SIM |
| Protocol | TCP, UDP, SMS |
| Waterproof | IP68 |
| Battery Life | Up to 7 years (N versions, AA lithium) / up to 3 years (rechargeable) |
| Certificate | FCC, CE, RCM (on going) |

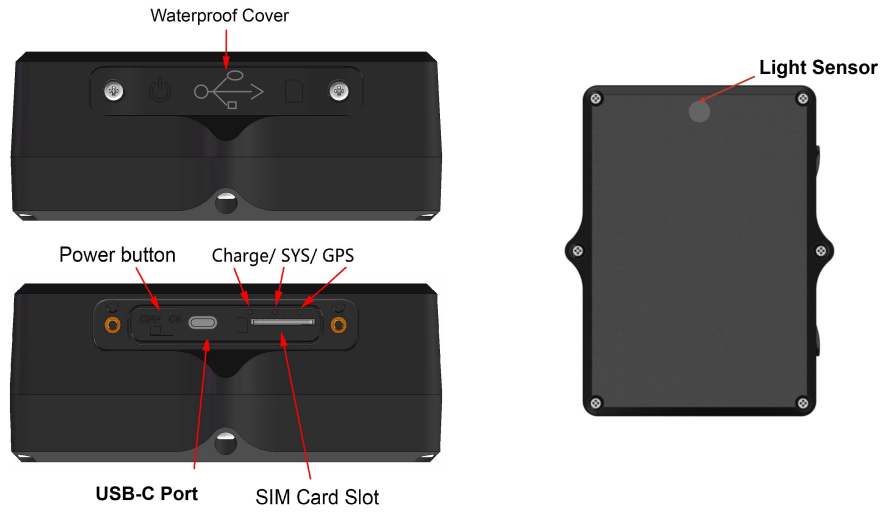

5. Interface
6. Installation
- Get ready for a Nano Sim Card that supports 4G with 30MB of data a month
- Open the waterproof cover
- Insert Sim card to sim card slot correctly(as the sim icon location )
- Make the Power button ON to power ON (Blue and green led will light).
- After that, the device will be ready.
- Check the LED status until access to the 4G network.
7. GPS Tracking Platform
- http://www.trackits.com (click “Demo” will auto-login)
8. User Manual & Catalog
- Datasheet
- User manual
- Working Mode
- Commands List
- Protocol
- FCC & CE certification in progress
11. MT700L Series Comparison Table
| Features | MT700L-EU | MT700L-LA | MT700L-N-EU | MT700L-N-LA |
|---|---|---|---|---|
| Region | Europe, Middle East, Africa, Asia-Pacific, Oceania | North & Latin America | Europe, Middle East, Africa, Asia-Pacific, Oceania | North & Latin America |
| 7 Years Battery Life | × | × | √ | √ |
| 3 Years Battery Life | √ | √ | × | × |
| 4G LTE Band(no 2G/3G fallback) | B1/B3/B5/B7/B8/B20/B28 | B2/B3/B4/B5/B7/B8/B28/B66 | B1/B3/B5/B7/B8/B20/B28 | B2/B3/B4/B5/B7/B8/B28/B66 |
| IP68 Waterproof | √ | √ | √ | √ |
| Non-rechargeable | √ | √ | ||
| Rechargeable | √ | √ | No-rechargeable | No-rechargeable |
| Screw/Magnet Mounting (*mounting bracket are optional) | √ | √ | √ | √ |
| Live Tracking | √ | √ | √ | √ |
| GPS Positioning | √ | √ | √ | √ |
| LBS Positioning | √ | √ | √ | √ |
| WiFi Positioning | √ | √ | √ | √ |
| Removal Alarm (light sensor) | √ | √ | √ | √ |
| Low Battery Alarm | √ | √ | √ | √ |
| Power Saving Mode | √ | √ | √ | √ |
| Programmable via Web/USB/SMS | √ | √ | √ | √ |
| Include backup Battery | 7800mAh Backup Battery | 7800mAh Backup Battery | Excluded | Excluded |
| Open Protocol | √ | √ | √ | √ |
| FCC, CE, RCM | On going | On going | On going | On going |
12. How to Choose the MT700L
- MT700L-N are non-rechargeable versions and do not include batteries by default. Customers need to purchase 3PCS Energizer L91 AA 1.5V batteries from our online store (click here) or locally. The battery life is up to 7 years when reporting once a day.
- MT700L are rechargeable versions that come with a backup 7800mAh battery. The battery life up to 3 years when reporting once per day.
13. Real Battery Life Test
- We will taken one MT700L-EU and one MT700L-N-EU in our office for the real long battery life test.We will share the public online URL link once they are ready.
14. FAQ:
- Q: What are the delivery and shipping times?
- A: Orders ship within 2–3 business days after payment (weekends and public holidays excluded). Priority Shipping takes 7–10 days. Free Shipping (18–25 days) is available in selected countries. The options for your country are shown at checkout.
- Q: Can I integrate the device with a third-party server?
- A: Sure, our protocol is open. Click here to download the protocol. After integration, the device will communicate directly with your server and no longer report data to our server.
- Q: Do you have a free tracking platform available for testing?
- A: Sure, the MT710L is already compatible with Traccar (port 5030), gps-trace(port 30184 ), gpwox(port 6030).
- Q: Does the item include a SIM card and tracking platform service?
- A: If you choose our SIM Card Plan, we will send you the device with a Mictrack IoT SIM Card. If you want to use our tracking platform, Click here to subscribe to the Mictrack tracking platform service. Of course, you can buy an IoT SIM Card locally, but make sure it supports 4G networks. The protocol is open and can also integrate with any third-party platform.
- Q: Which SIM card is best for this GPS tracker?
- A: Get a 4G LTE data SIM with about 30 MB/month, and choose the EU or LA version that matches your region. A band match is necessary but not sufficient: the carrier must also run 4G LTE on one of those bands where you use the tracker. We recommend the Mictrack IoT SIM Card — check your country in the coverage list.
- Q: Which third-party platforms are compatible with this 4G GPS tracker?
- A: Most third-party platforms are already compatible with the Mictrack MT700L. Click here for details.
- Q: How do I config the device for first-time use?
- A: You can setup your device via SMS (if supported by the SIM card) . If your sim card is data only you can setup the deivce via the USB Config tool ( Click this post to see how to set up the MT710L vis USB Config tool) If you can share your SIM card APN with us, we can config it for you before shipment, so you won’t need to set it up when you receive your MT710l.
- Q: What are the supported working modes for the device?
- A: The MT700L currently supports 9 working modes, covering most use cases. You can choose the mode that best suits your needs. MODE 3 is ideal for asset tracking. For more details, please refer to the MT700L Working Mode.
- Q: What are the supported commands for the device?
- A: Here is a list of all the supported commands, including SMS, USB, and Downlink commands. Click here for details.
- Q: What protocols are supported by this device?
- A: It supports TCP and UDP.
- Q: What network types are supported by the device?
- A: It supports 4G LTE Cat 1 bis only. It does not support 2G or 3G.
- Q: What frequency bands are supported by the device?
- A: It supports all following bands:
MT700L-EU/MT700L-N-EU: B1/B3/B5/B7/B8/B20/B28
MT700L-LA/MT700L-N-LA: B2/B3/B4/B5/B7/B8/B28/B66
- How to Calculate Battery Voltage into Percentage?
- A: Check this post to get more detail.
- Q: How to track my order?
- A: You can click this link and then input your order number (for examples #2023) and your email to check.
- Q: Still questions?
-
If you have any issues please feel free to discuss on Mictrack Forum. Our engineers will reply within 12 hours.
