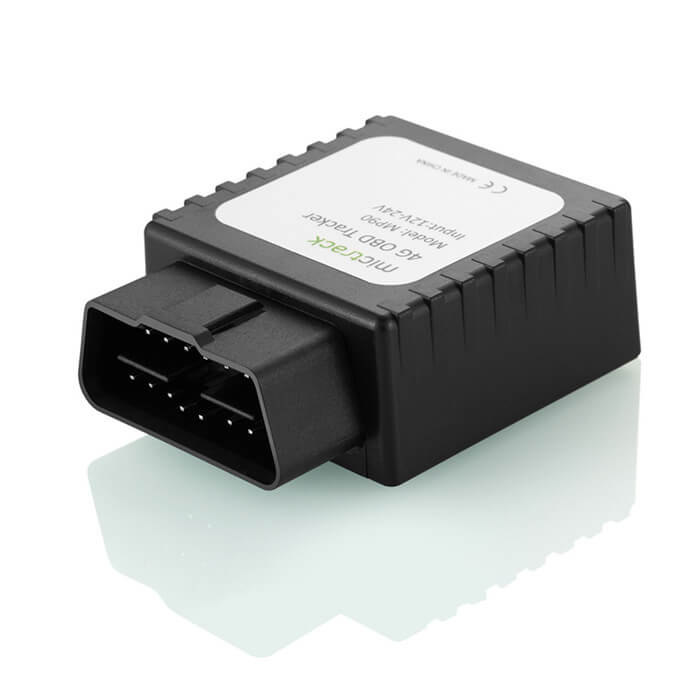

Mictrack 4G OBD Tracker MP90
The world’s Smallest 4G OBD tracker. The REAL 4G unit can work on the 4G/3G/2G network.
1. Most countries have shut down their 2G and 3G networks.
1. Most countries have shut down their 2G and 3G networks.
2. 4G unit can save your time and money, you don’t need to upgrade your 3G GPS tracker again even if 3G is close.
3. 4G products are full network coverage and fast speed than 3G/2G.
3. 4G products are full network coverage and fast speed than 3G/2G.
| Dimension | 67(L) x 50(W) x 25(H) mm |
| Weight | 65g |
| Power supply | 12-24 VDC |
| Backup battery | 3.7 V 120 mAh |
| Power consumption | 50mA standby current at 12 V |
| Operating temperature | -20°C to 55°C |
| Humidity | 5%~95% non-concretion |
| Working hour | 2 hours in power-saving mode, 0.5 hours in normal mode |
| LED indicator | 4G(RED), GPS(BLUE) |
| Sensor | 3D acceleration sensor |
| Antenna | Internal 4G & GPS antennas |
| GPS Sensitivity | -162dBm |
| Positioning Accuracy | 2.5m |
4G Frequency bands | MP90-A (US/Canada/Mexico) 4G LTE: B2/B4/B12 3G WCDMA: 850/1700/1900MHz MP90-E (Europe/Asia/Africa) 4G LTE: B1/B3/B7/B8/B20/B28A 3G WCDMA : 900/2100MHz 2G: 900/1800MHz MP90-AU (Australia/New Zealand) 4G LTE: B1/B2/B3/B4/B5/B7/B8/B28/B40 3G WCDMA: 850/900/1900/2100MHz 2G :850/900/1800/1900MMz Note: Select correct device according to your local frequency bands. |
| SIM Card interface | Micro Size SIM |
FAQ:
- Q: What is the delivery time & shipping time?
- A: The device will be sent in 1-2 days after receiving your order. DHL will take 3-5 days and free shipping will 15-35 days.
- Q: What is the demo account for the App & platform?
- A: Web: www.trackits.com and then click”Demo” to log in to the test account.
- Q: The item includes a SIM Card and tracking platform service?
- A: No, you have to get a 4G SIM card from a local provider. Click here to subscribe Mictrack tracking platform service
- Q: Which SIM Card is better to match with the 4g tracker?
- A: Get a 4G SIM Card that supports text and data service with 30MB/month.
- Q: Can I integrate the device with my own server?
- A: Sure, our protocol is open Click here to download the protocol.
- Q: Which Third Party Platforms are compatible with this 4G GPS tracker?
-
A: Check this post https://www.mictrack.com/support/third-party-platforms/
- Q: What’s the difference between 4G OBD Tracker MP90 and Cat M1&NB-IoT OBD Tracker MP90-NB?
- A: For the detail as follow:
| Functions | MP90 | MP90-NB |
|---|---|---|
| Network | 4G LTE CAT 4 | 4G LTE CAT M1 & NB-IoT |
| OBD II connector Plug and Play | √ | √ |
| Real-time tracking | √ | √ |
| Voice / Audio monitoring | × | × |
| Vehicle trip history | √ | √ |
| Geo-Fence alarm and reporting | √ | √ |
| Over-Speed alarm and reporting | √ | √ |
| Backup battery low power alarm | √ | √ |
| Car battery low power alarm | √ | √ |
| High-temperature alarm | √ | √ |
| Power saving/sleep mode | √ | √ |
| Mileage report | √ | √ |
| SMS | √ | × |
| Frequency | A/E/AU | Global |
- Q: How to program the MP90 via USB Config Tool?
- A: Click here to download the config tool and user guide. Config tool is an option.
-
If you have any issues please contact us at info@mictrack.com
