Cat M1 & NB-IoT GPS Tracker MT825

$69.00$89.00

  • CAT M1 & NB-IoT & GSM Network
  • Long standby up to 5 months
  • Integrate to any third-party platform
  • GPS+WiFi+LBS Positioning
  • SOS Report
  • P65 Water-resistant
  • OTA (Over the Air)
  • PC & Mobile App
Clear

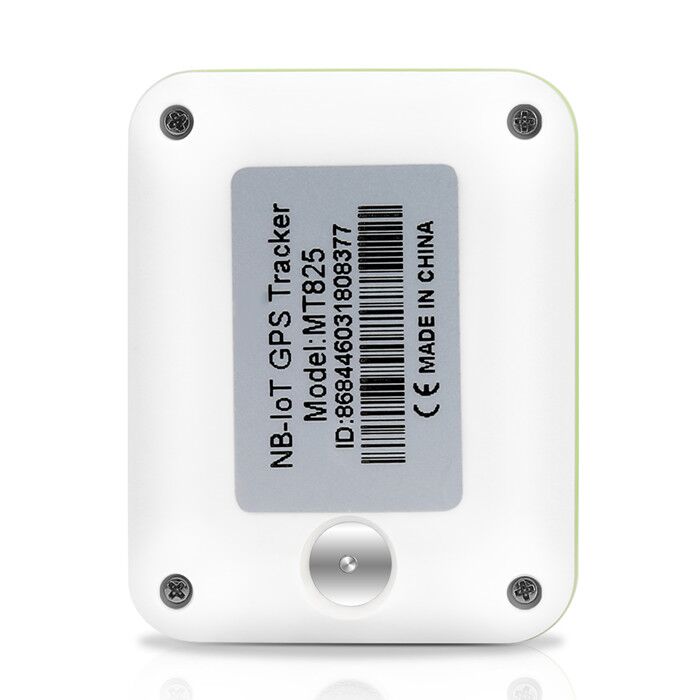

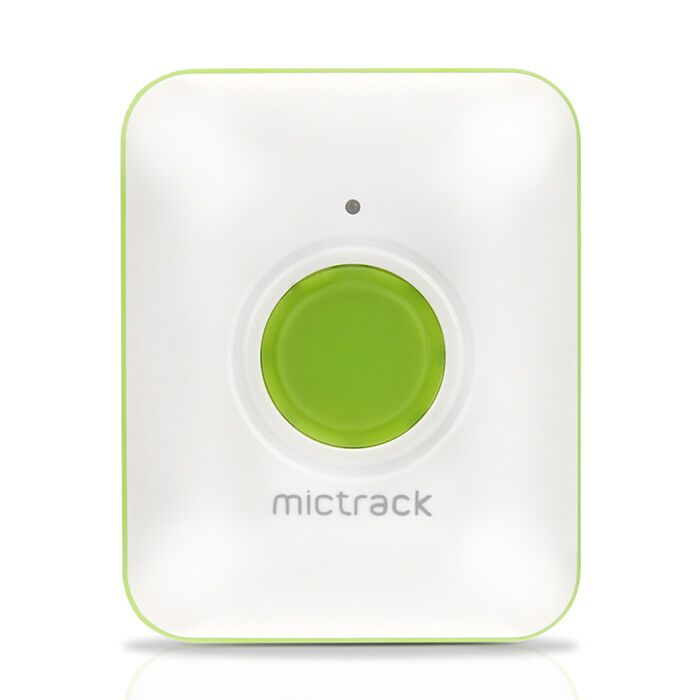

MT825 is a Mini GPS tracker that uses the latest CAT M1 (LTE-M) & NB-IoT (Cat NB1) technology that can provide low power consumption and optimized data transmission at a low cost. The parents or pet owners can track the unit via their smartphone even if far away. With the hybrid positioning system, GPS and WiFi allow getting a more precise location. It can be used for personal, pet, and Assets tracking.

1. Features

  • CAT M1 & NB-IoT & GSM network
  • Real-timing tracking
  • GPS+WiFi+LBS Positioning
  • History record check
  • SOS Report
  • Geo-Fence alarm
  • Low battery alarm
  • Power saving mode
  • Long standby up to 5 months (24 hours interval time)
  • P65 Water-Resistant
  • PC & Mobile App tracking (optional)
  • OTA (remote upgrade firmware)

2. Applications

  • Kids & Elderly tracking
  • Lonely workers tracking
  • Pets tracking
  • Asset tracking

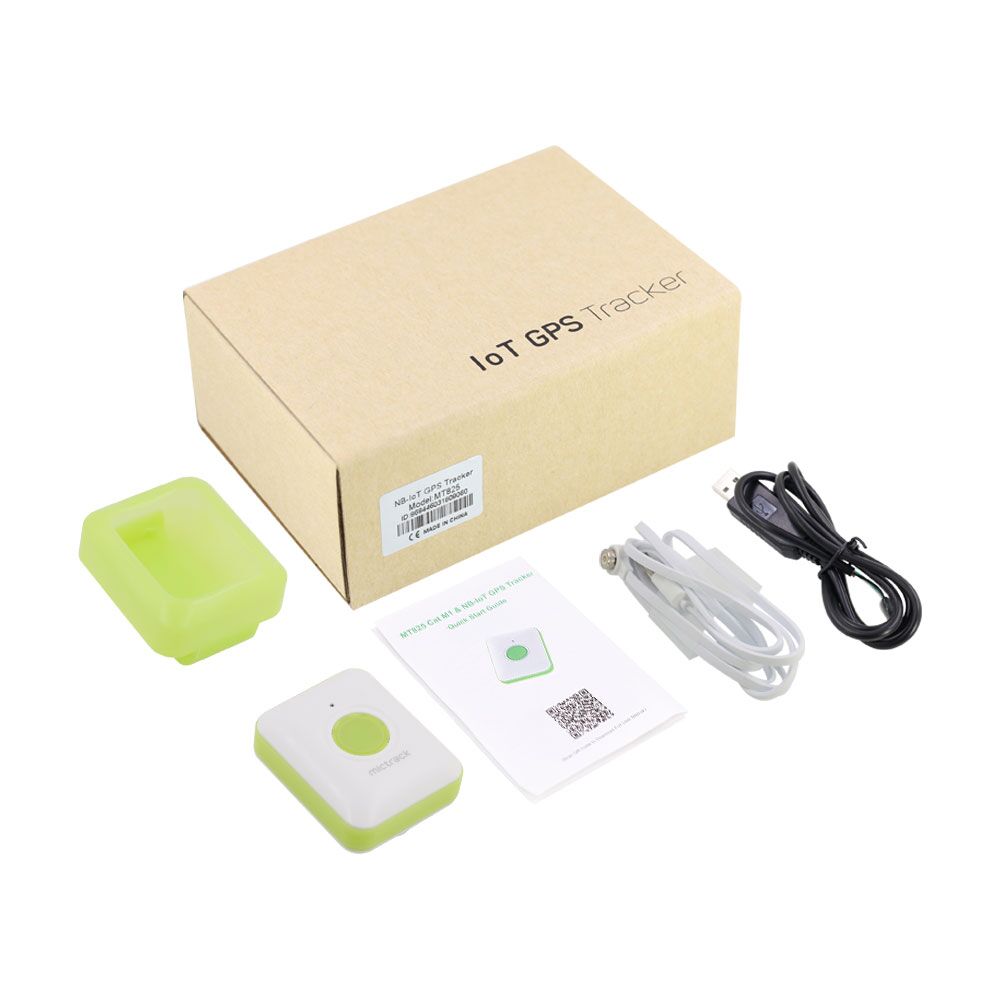

3. In the box

Standard Accessories

  • 1* MT825 GPS Tracker
  • 1* Magnetic charging cable (white wire)
  • 1* Silicone Case (green)
  • 1* Quick Start Guide







Optional Accessories

  • 1* Pet collar(optional)

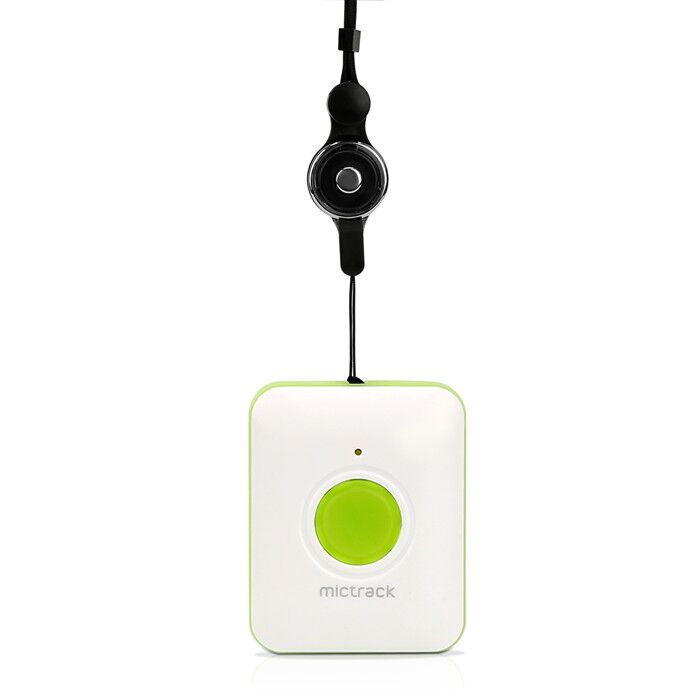

  • 1* Lanyard (optional, black)
  • 1* USB Config Cable (black wire)

4. Specification

Dimension50(L)*40(W)*16(H)mm
Weight36g
Power ConnectorMagnetic charging DC 5V
Backup battery3.7 V 680mAh
Frequency bandsCat M1 (LTE-M, eMTC) :
LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28
LTE TDD: B39

NB-IoT (Cat NB1):
LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28

GSM: 850/900/1800/1900Mhz
PositioningGPS, WiFi, LBS
GPS sensitivity-162dBm
Channel56
Positioning Accuracy10m
Cold Start30s
Warm start15s
Hot start1s
Working temperature-20°C to +65°C
Humidity5% to 95% non-concretion
AntennaInternal LTE CAT M1 & NB-IoT & GPS antennas
Sensor3D accelerometer sensor
LEDRED(Charge), GREEN(Cellular and GPS)
WaterproofIP65
SIM Card interfaceNano SIM
Certificate(Module)FCC/PTCRB/AT&T/Verizion/T-Mobile/Vodafone

5. InterfaceMT825_interface

6. Installation

  • Open the waterproof rubber plug
  • Insert the Nano sim card to sim card slot correctly(as the following picture)
  • Press the SOS button for 3 seconds to power on
  • After that, the device will be ready.
  • Check the LED status until access to the CAT M1 or NB-IoT network.SIM_Card_install
  • Installation Video



7. GPS Tracking Platform

MT825-GPS

MT825-histroy

8. User Manual & Catalog

9. Battery life (Backup battery is 680mAh and based on Mode 1)

  • 5 minutes report interval, work for 3 days
  • 10 minutes report interval, works for 5 days
  • 30 minutes report interval, works for 7 days
  • 60 minutes report interval, work for 25 days
  • 24 hours report interval, work for 5 months



FAQ:



  • Q: What is the delivery time & shipping time?
  • A: The device will be sent in 1-2 days after receiving your order. DHL will take 3-5 days and free shipping will 15-35 days.
  • Q: What is the demo account for the App & platform?
  • A: Web: www.trackits.com  (Click “Demo” auto-login)
  • Q: The item include SIM Card and tracking platform service?
  • A: No, you have to get a CAT M1 or NB-IoT SIM card from a local provider. Click here to subscribe Mictrack tracking platform service
  • Q: SOS Button function?
  • A: Short press for SOS report; can wake up from sleep mode; press for 3seconds to power on/off.
  • Q: Which SIM Card is better to match with the IoT GPS tracker?
  • A: Get an LTE-M or NB-IoT SIM Card that supports data service with 30MB/month.
  • Q: Can I integrate the device with my own server?
  • A: Sure, our protocol is open, and  Click here to download the protocol. After integrating the device will direct communication with your server and not report data to our server anymore.
  • Q: Which Third Party Platforms are compatible with this CAT M1 & NB-IoT GPS tracker?
  • A: Currently it only supports Traccar(port 5191) and GPSworx (port 6191) and must setup to UDP Protocol.
  • If you have any issues please contact us  info@mictrack.com
